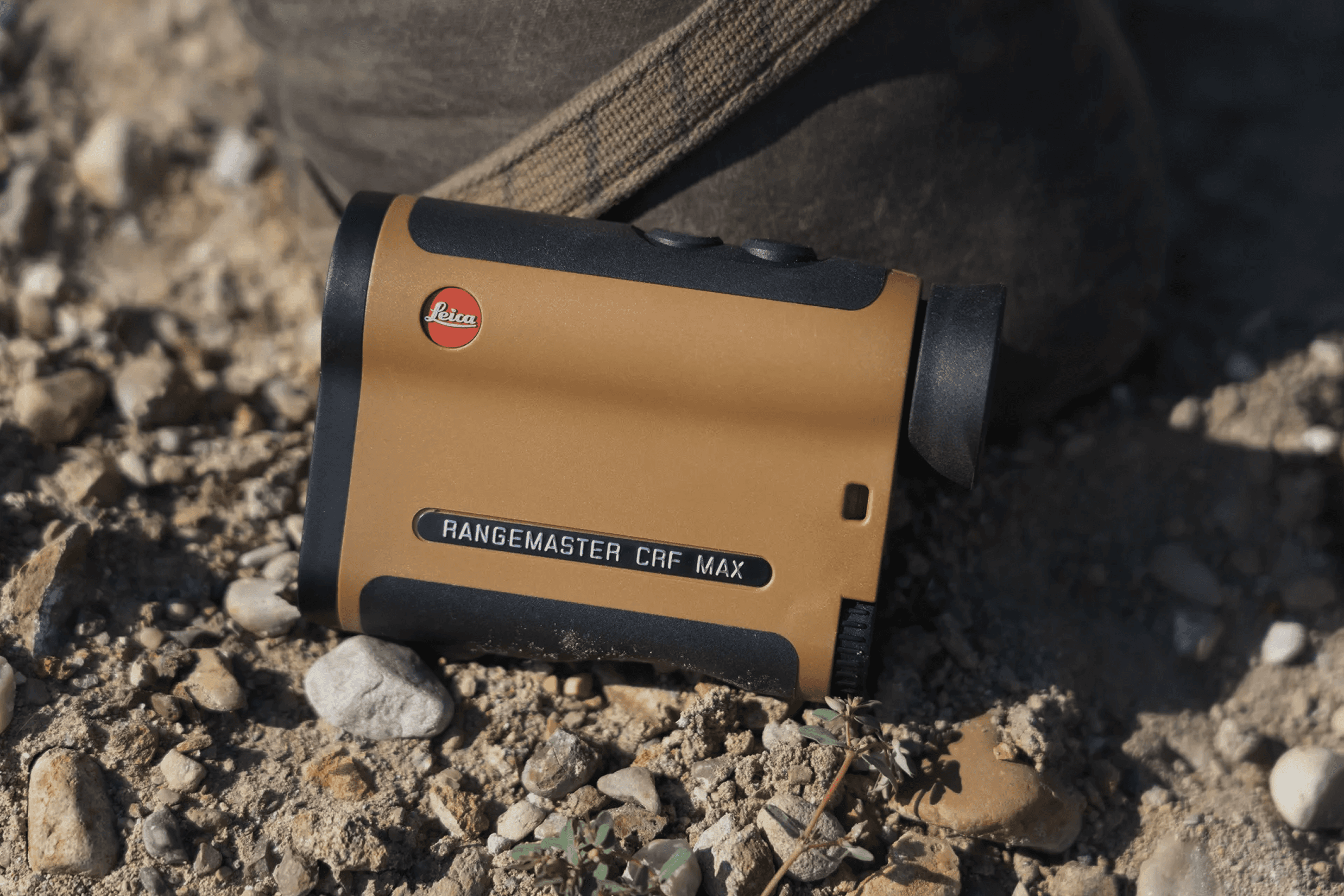

The Leica CRF MAX is a high-performance tool that calculates the probability of
a target being hit by analyzing environmental data, such as wind, pressure, inclination, and other key factors.
Our goal was to translate this data into an intuitive interface that elevates distance measurement with exceptional accuracy and reliability, while staying true to Leica’s philosophy of essentialism and clarity.
The Leica CRF MAX is a high-performance tool that calculates the probability of
a target being hit by analyzing environmental data, such as wind, pressure, inclination, and other key factors.
Our goal was to translate this data into an intuitive interface that elevates distance measurement with exceptional accuracy and reliability, while staying true to Leica’s philosophy of essentialism and clarity.
The Leica CRF MAX is a high-performance tool that calculates the probability of
a target being hit by analyzing environmental data, such as wind, pressure, inclination, and other key factors.
Our goal was to translate this data into an intuitive interface that elevates distance measurement with exceptional accuracy and reliability, while staying true to Leica’s philosophy of essentialism and clarity.
User experience
User experience
Brand
Brand
Visual design
Visual design
design system
design system
Challenges
Challenges
We partnered with the Leica team to identify key
challenges and enhance the device experience:
We partnered with the Leica team to identify key
challenges and enhance the device experience:
We partnered with the Leica team to identify key challenges and enhance the device experience:
Lacks clarity, simplicity, and precision
Lacks clarity, simplicity, and precision
Lacks clarity, simplicity, and precision
Complex interactions
Complex interactions
Complex interactions
Brand heritage not reflected in visual language
Brand heritage not reflected in visual language
Brand heritage not reflected in visual language
Limited customisation options
Limited customisation options
Limited customisation options
Complex interactions
Complex interactions
Brand heritage not reflected in visual language
Brand heritage not reflected in visual language

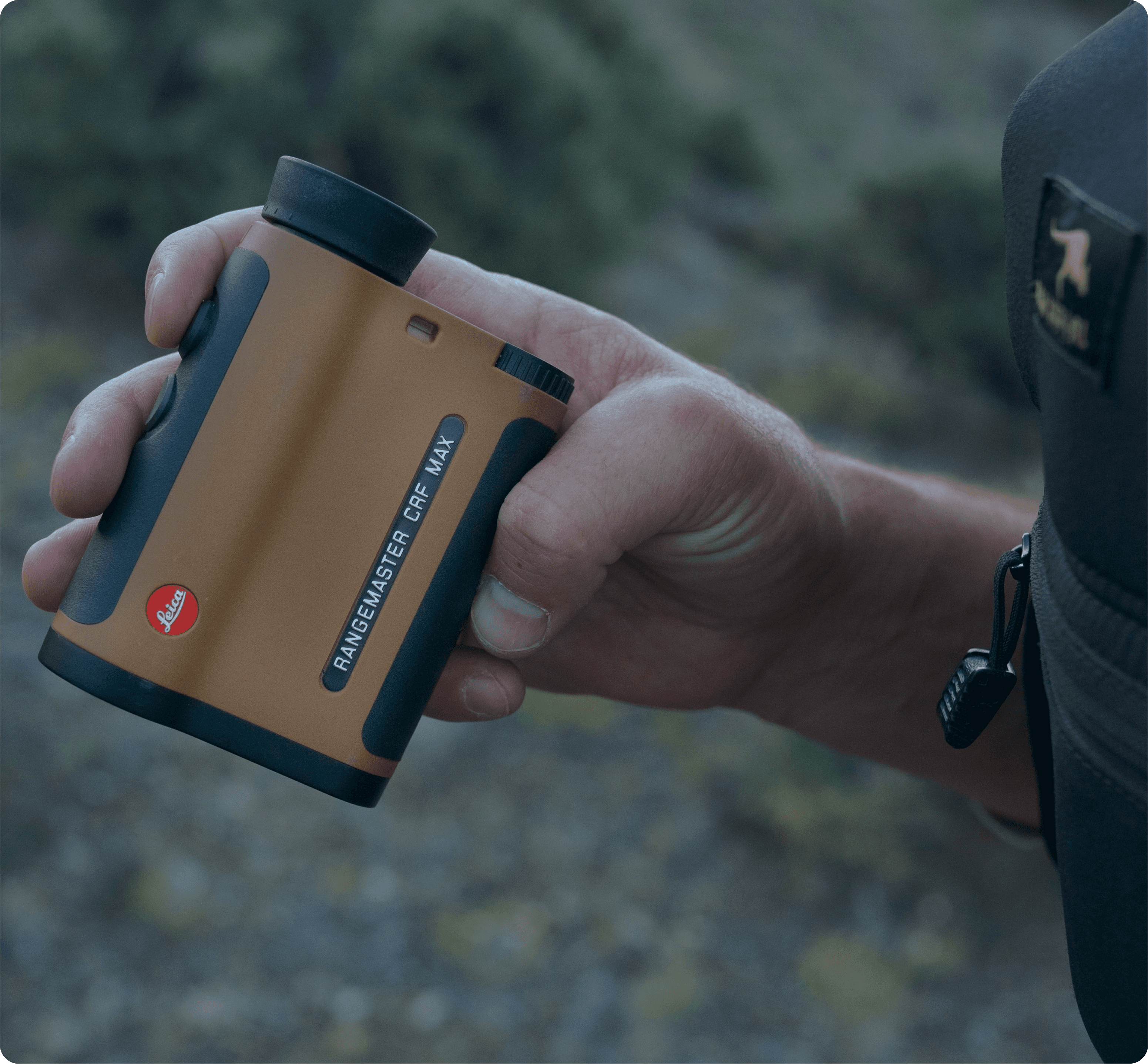

Interaction model
Interaction model
We designed a unified interaction model, with all main navigation controls ergonomically positioned at the top, enabling fast and intuitive access to key functions
We designed a unified interaction model, with all main navigation controls ergonomically positioned at the top, enabling fast and intuitive access to key functions
We designed a unified interaction model, with all main navigation controls ergonomically positioned at the top, enabling fast and intuitive access to key functions
measure distance
measure distance
measure distance
Short press
Short press
Short press
Toggle context-specific presets
Toggle context-specific presets
Long press
Long press
Long press
Main menu
Main menu
Main menu
Long press
Long press
Long press
access help
access help
access help
Short press
Short press
Short press
Design evolution
Design evolution
The evolution from the previous interface (left) to the new one (right). Visual language, reimagined for speed, precision, and usability
The evolution from the previous interface (left) to the new one (right). Visual language, reimagined for speed, precision, and usability
The evolution from the previous interface (left) to the new one (right). Visual language, reimagined for speed, precision, and usability

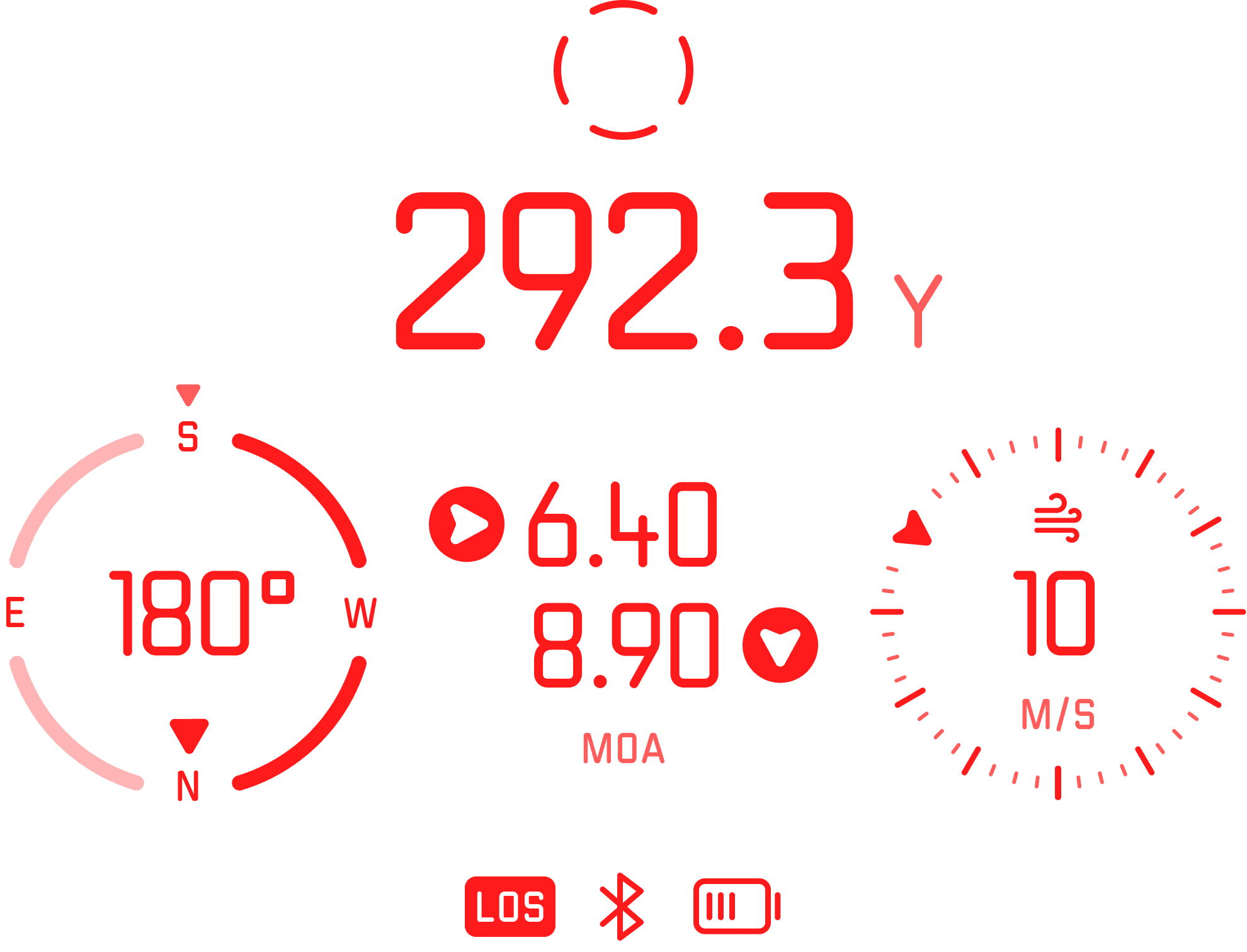

Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.

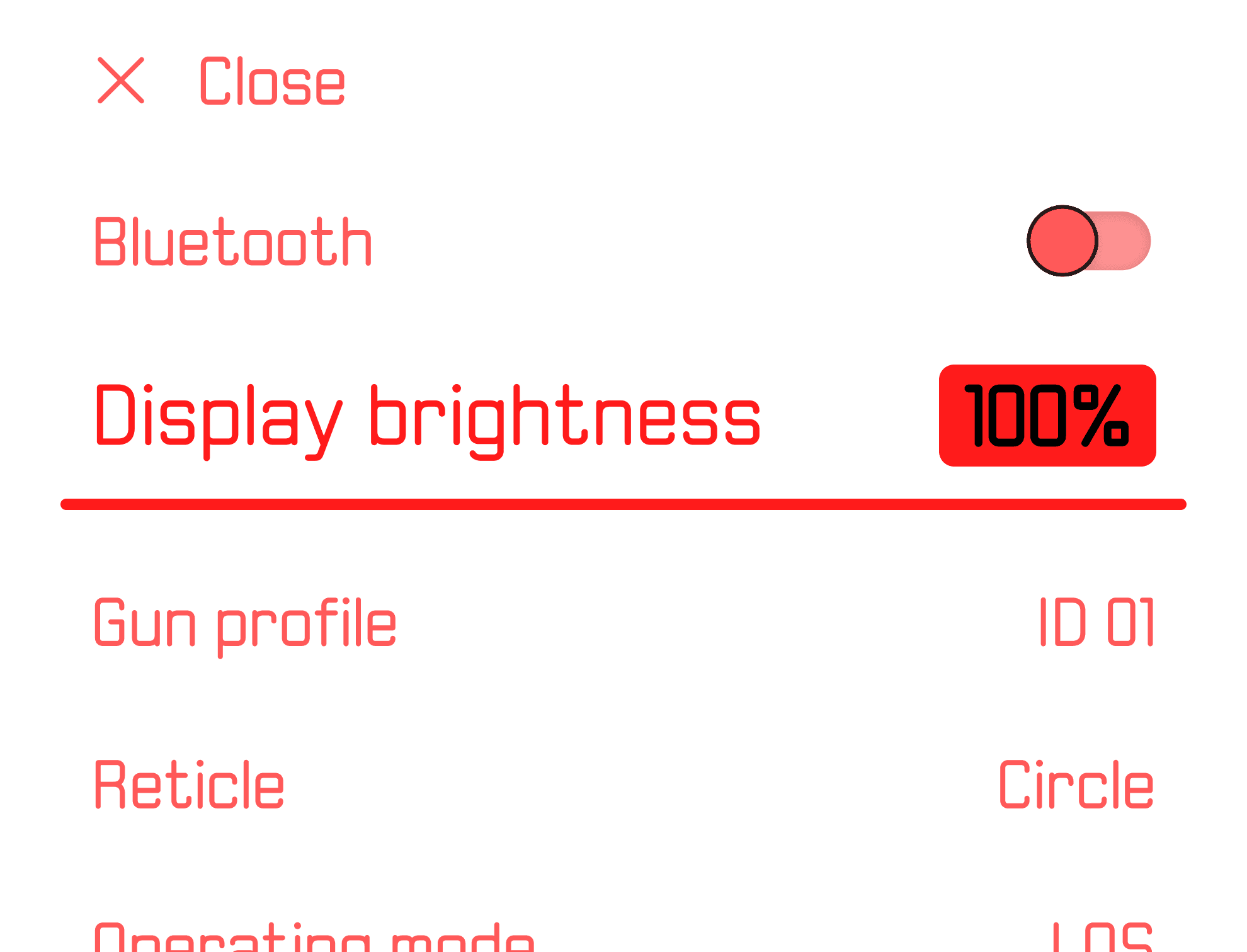

Main Menu

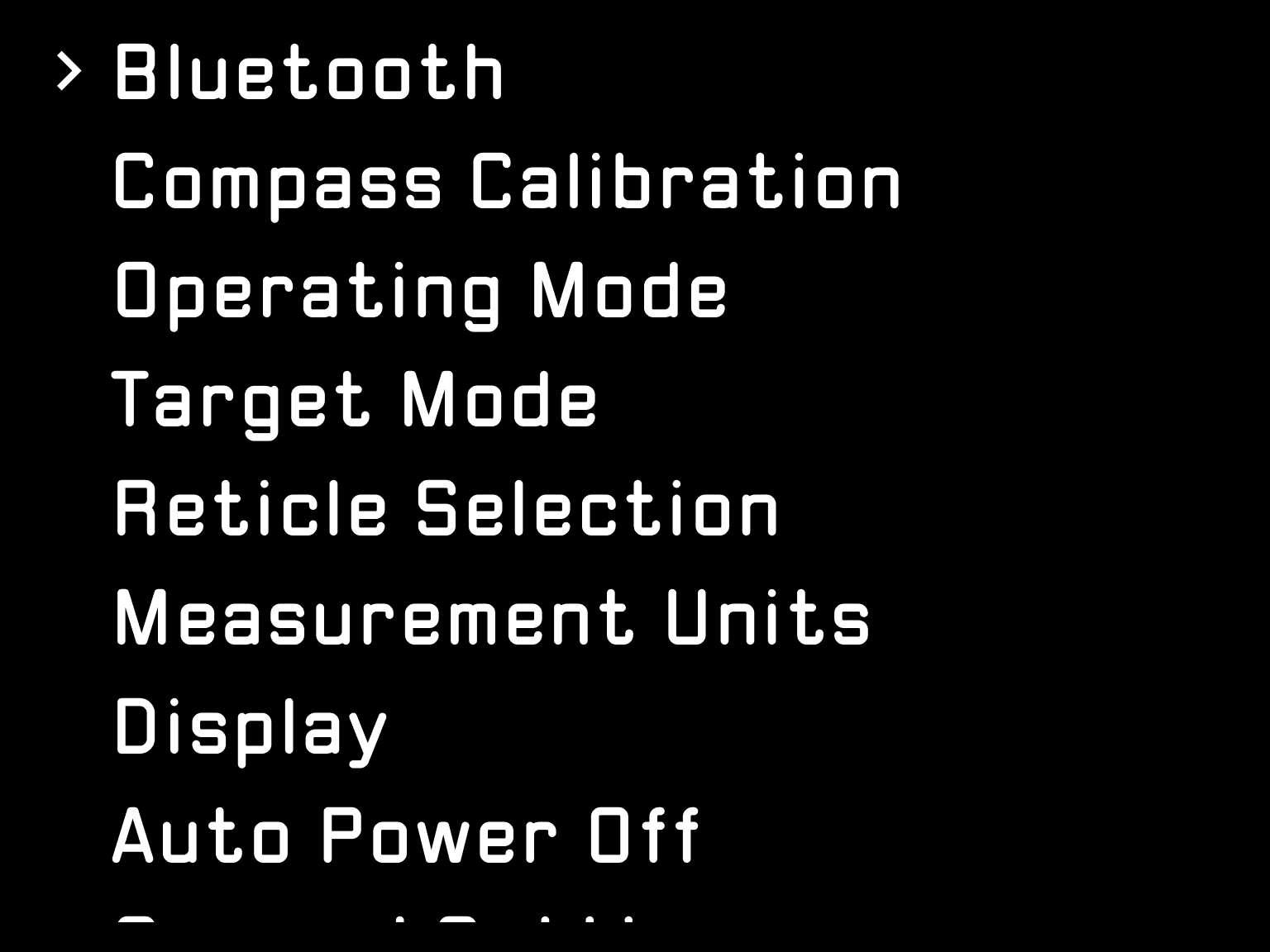

Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts
and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active
setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts
and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active
setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts
and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active
setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts
and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active
setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Liveview
Reduced to essentials, the design highlights core information through streamlined layouts and distinctive widgets, ensuring absolute clarity and precision.
Main Menu
Refined typography, paired with a structured visual hierarchy, directs focus to the active setting, ensuring navigation remains immediate and unobstructed.
Alternative viewing mode, giving users tailored access
to additional controls based on their needs
Alternative viewing mode, giving users tailored access
to additional controls based on their needs
Alternative viewing mode, giving users tailored access to additional controls based on their needs
This viewing mode empowers users to customize their display, showing only the information most relevant to them, ensuring full control.
This viewing mode empowers users to customize their display, showing only the information most relevant to them, ensuring full control.

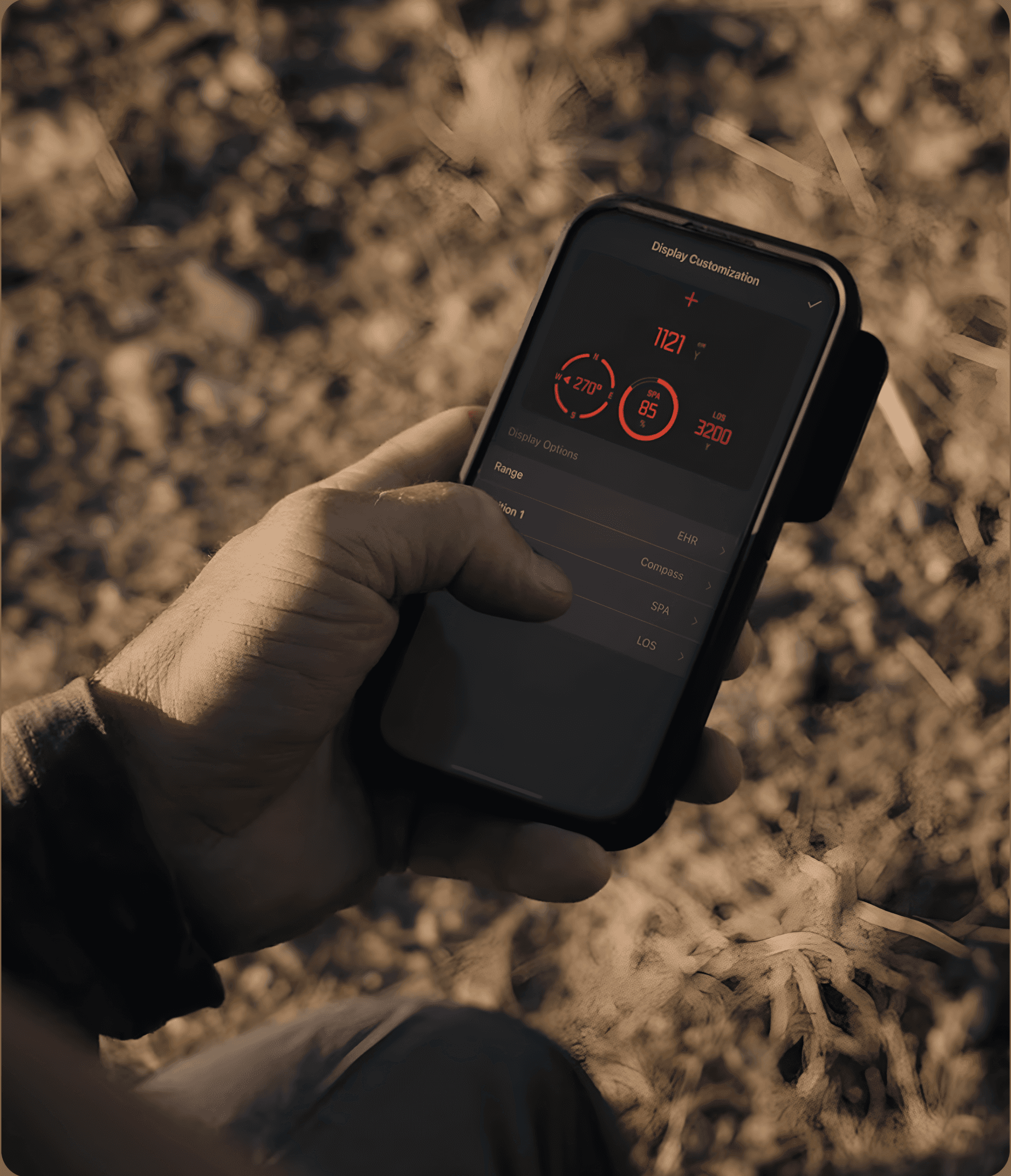

customisation
customisation

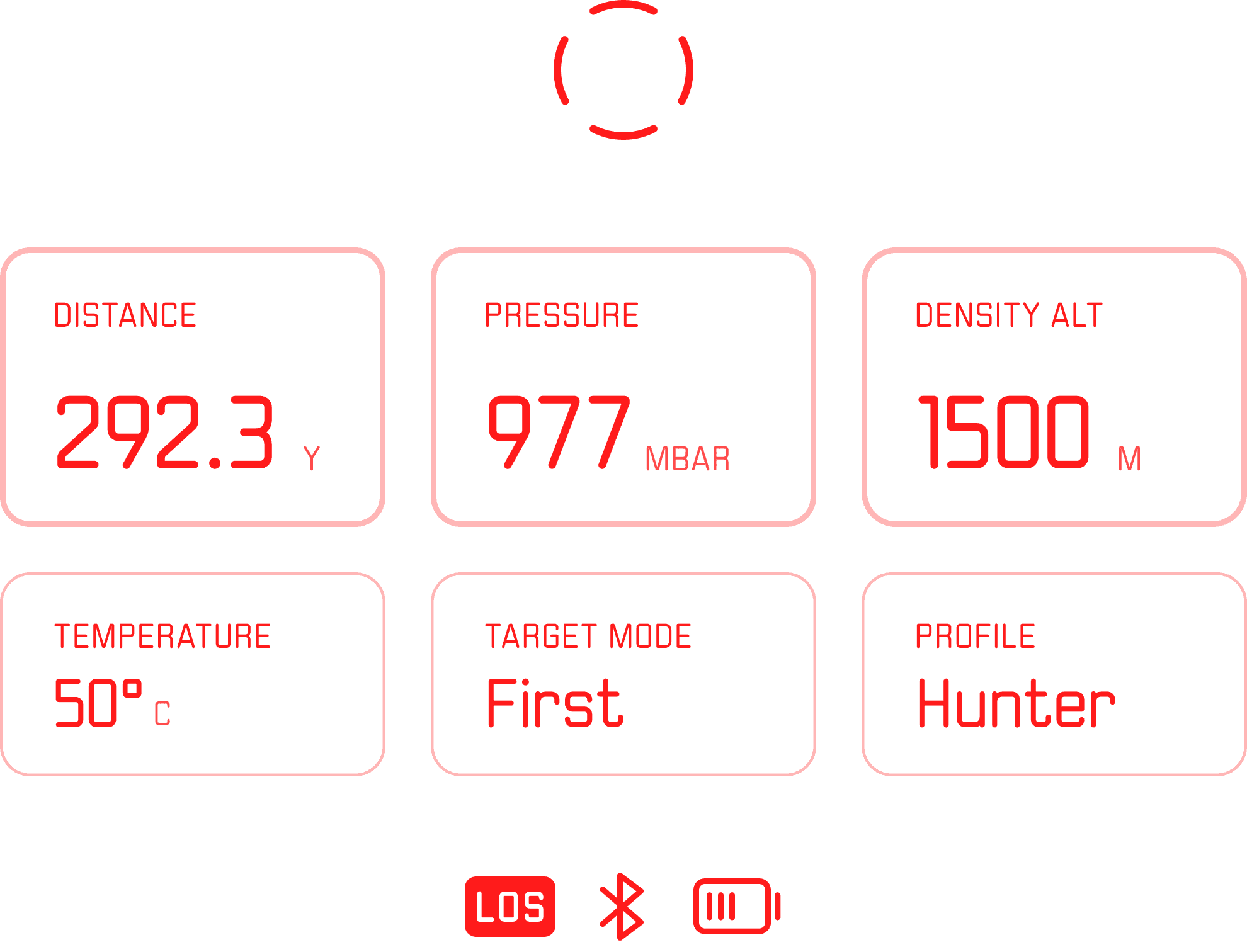

Manually adjustable settings to match real-world conditions, ensuring maximum accuracy and reliability
Manually adjustable settings to match real-world conditions, ensuring maximum accuracy and reliability
Manually adjustable settings to match real-world conditions, ensuring maximum accuracy and reliability
These settings give users full control to directly compensate for environmental conditions, such as wind speed and direction, seamlessly adapting to any scenario.
These settings give users full control to directly compensate for environmental conditions, such as wind speed and direction, seamlessly adapting to any scenario.
accuracy & reliability
accuracy & reliability

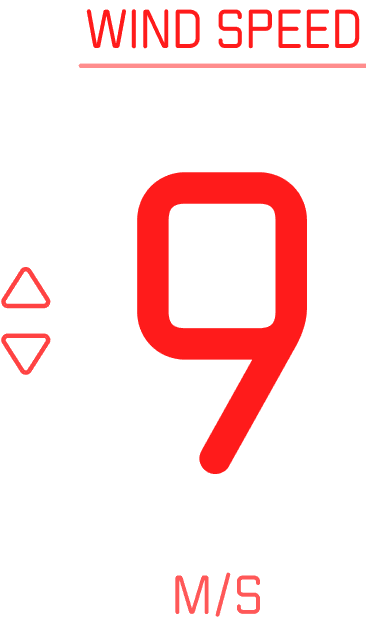

Widgets
Widgets
Designed distinctive Leica widgets, making essential settings visible at a glance
Designed distinctive Leica widgets, making essential settings visible at a glance
Designed distinctive Leica widgets, making essential settings visible at a glance
Each widget enhances measurement accuracy while remaining intuitive and unmistakably Leica.
Each widget enhances measurement accuracy while remaining intuitive and unmistakably Leica.

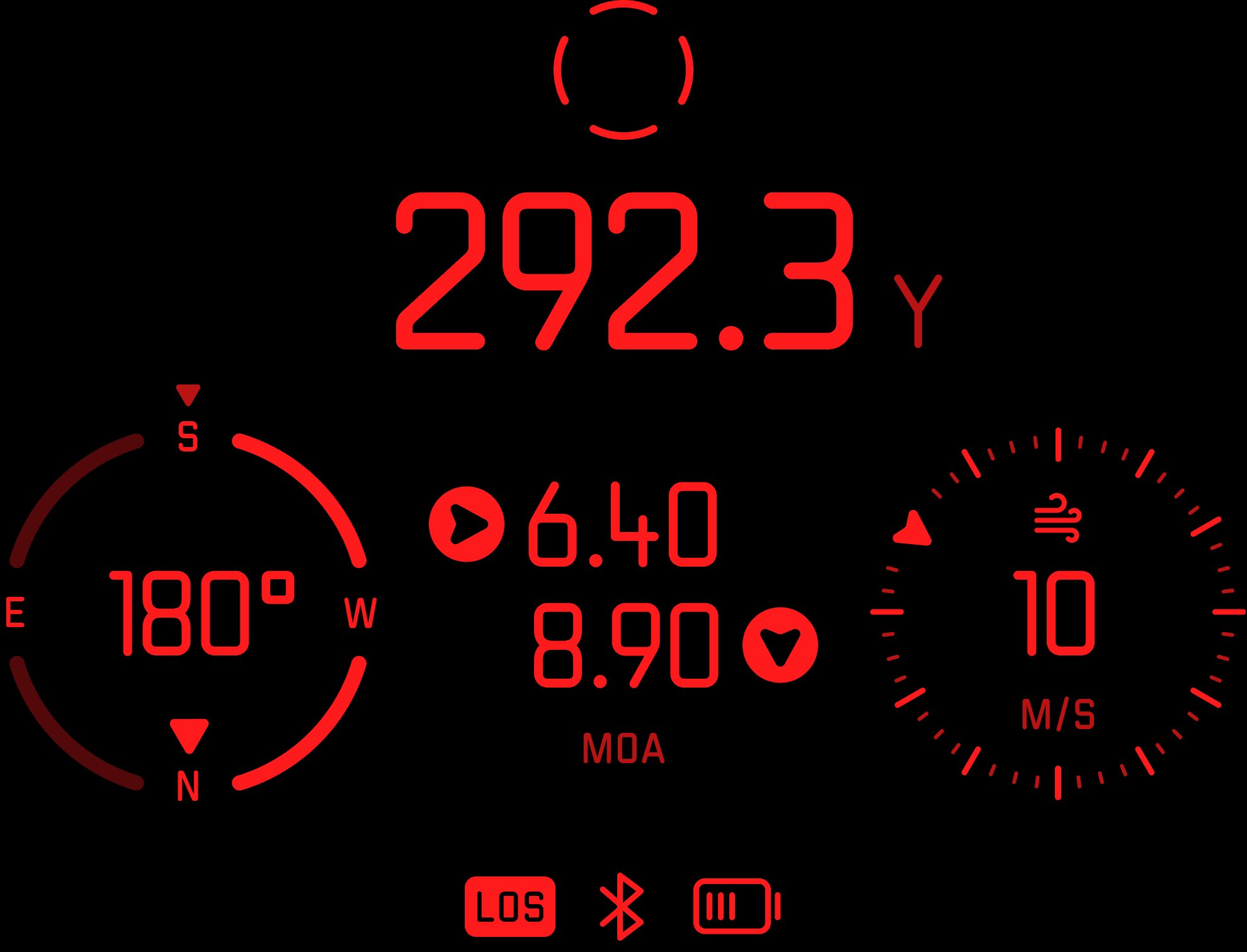

Essential information remains in the center, providing immediate clarity and visibility
Essential information remains in the center, providing immediate clarity and visibility
Essential information remains in the center, providing immediate clarity and visibility
Considering the device’s circular viewfinder, this approach was chosen to compensate for reduced visibility at the edges, ensuring that critical information remains immediately visible even in demanding conditions.
Considering the device’s circular viewfinder, this approach was chosen to compensate for reduced visibility at the edges, ensuring that critical information remains immediately visible even in demanding conditions.
Design system
Design system

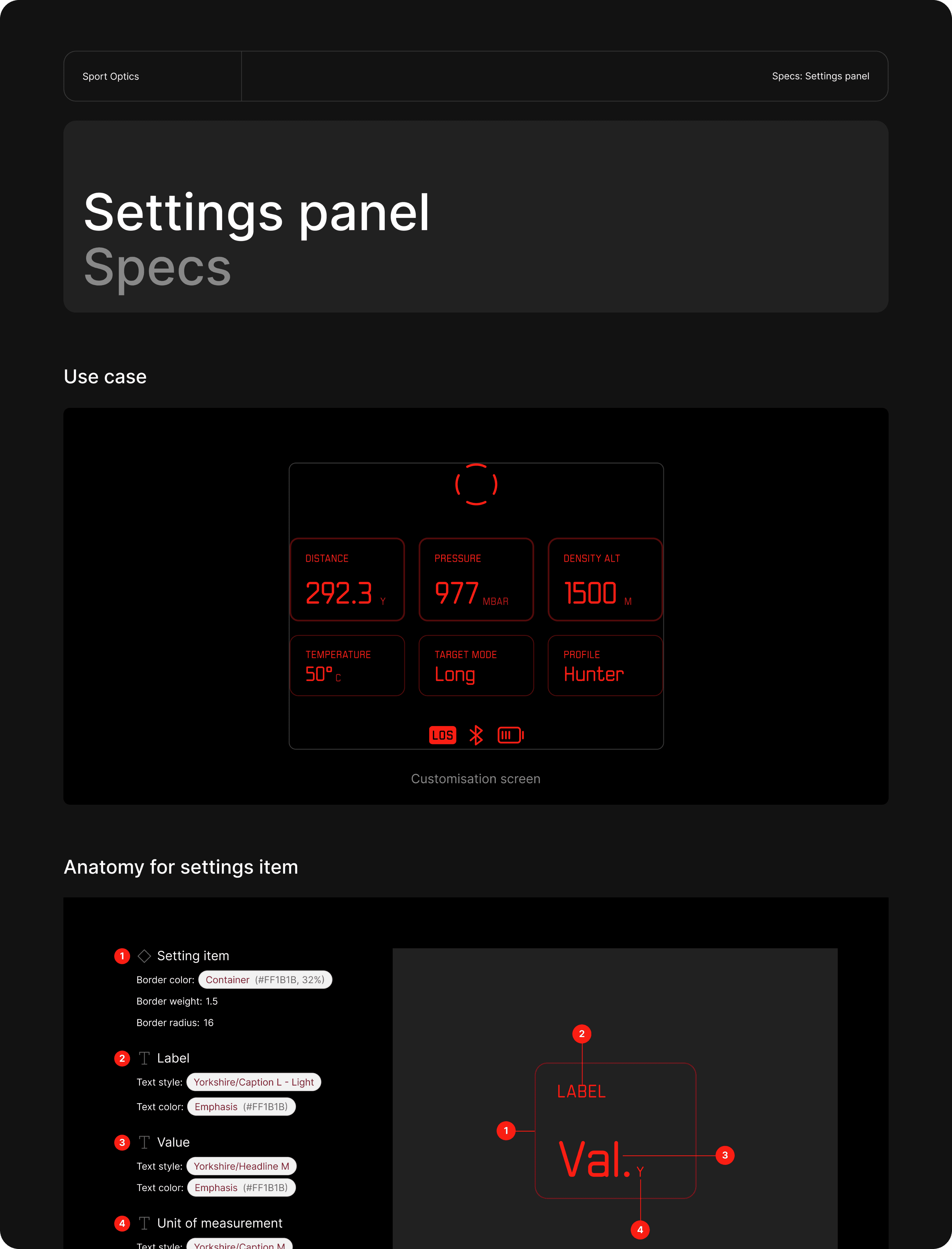

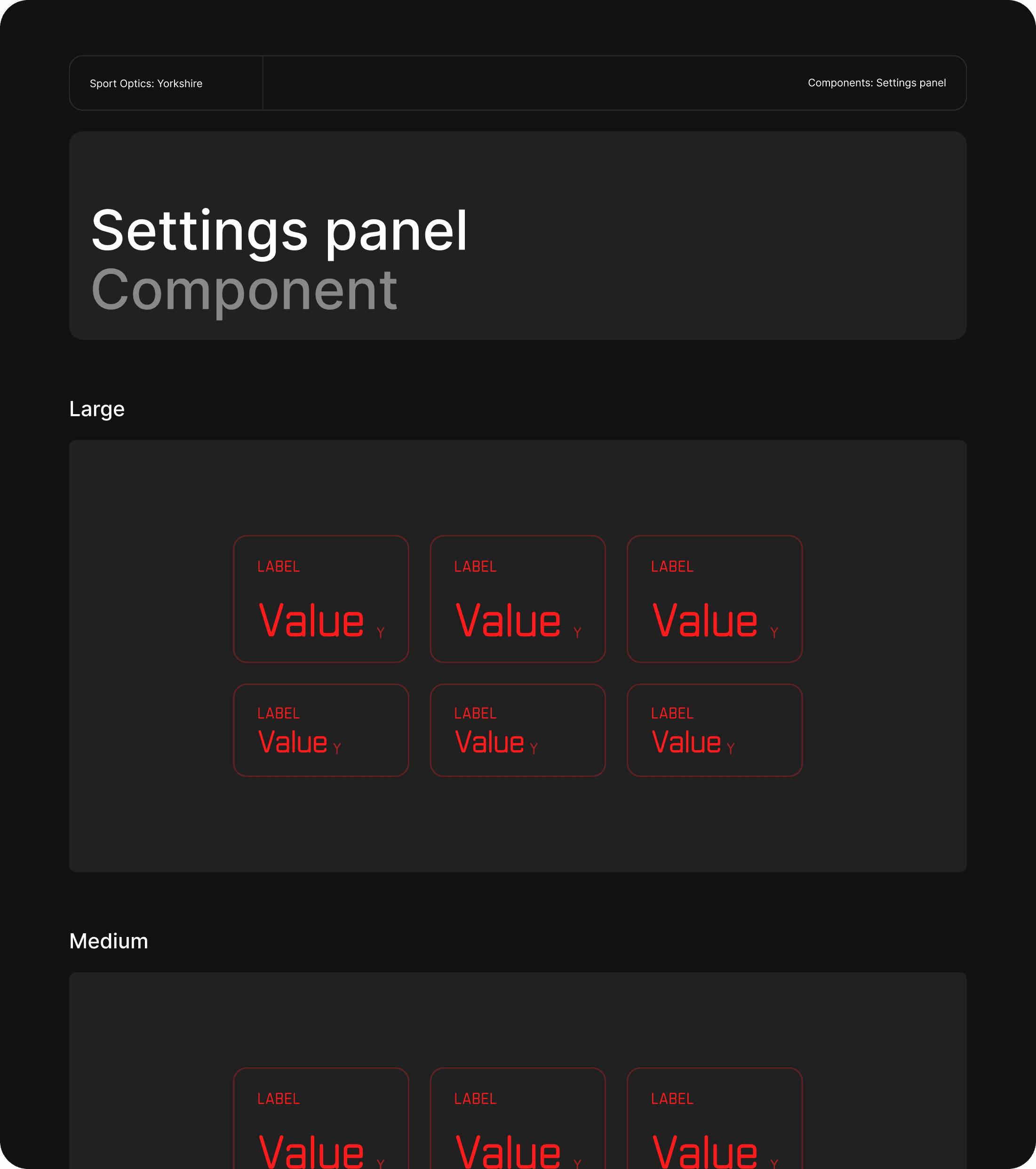

To support the new experience, we implemented platform-specific components built on the Leica foundation, ensuring consistency, coherence, and accessibility across the product ecosystem
To support the new experience, we implemented platform-specific components built on the Leica foundation, ensuring consistency, coherence, and accessibility across the product ecosystem
To support the new experience, we implemented platform-specific components built on the Leica foundation, ensuring consistency, coherence, and accessibility across the product ecosystem
Outcome
Outcome
We’ve created an experience that embodies Leica’s legacy of precision — an interface delivering uncompromising accuracy in critical measurements.
Every interaction has been refined for clarity and reliability, allowing users to perform essential actions quickly and efficiently. The new design bridges technical accuracy with a human touch, making complex measurements feel natural and effortless.
We’ve created an experience that embodies Leica’s legacy of precision — an interface delivering uncompromising accuracy in critical measurements.
Every interaction has been refined for clarity and reliability, allowing users to perform essential actions quickly and efficiently. The new design bridges technical accuracy with a human touch, making complex measurements feel natural and effortless.
We’ve created an experience that embodies Leica’s legacy of precision — an interface delivering uncompromising accuracy in critical measurements.
Every interaction has been refined for clarity and reliability, allowing users to perform essential actions quickly and efficiently. The new design bridges technical accuracy with a human touch, making complex measurements feel natural and effortless.
